>>> Product Summarize

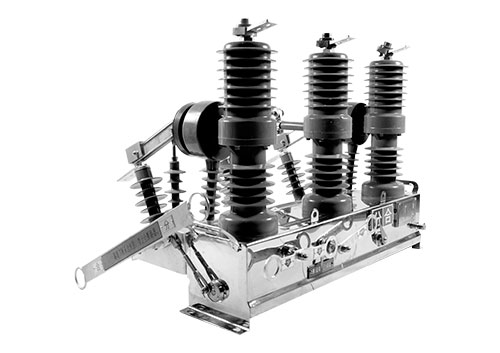

ZW32-12 type outdoor HV vacuum circuit breaker is
outdoor HV power distribution equipment for 12kV, three phase. It is mainly
used for breaking, making load current, overload current and short circuit
current in power system. It is applicable in protection and control for substation
, industrial and mining area, and also urban and rural network construction as
well as places with frequent operation. The product comply with IEC 62271-100
and GB1984-2014 standards.
>>>

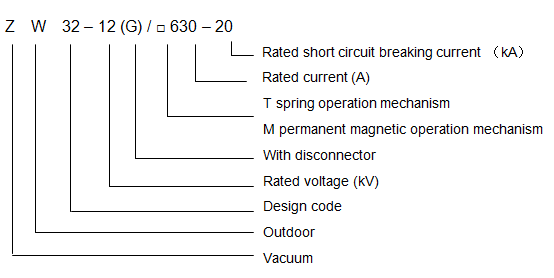

Model
>>>
Structure Features
1. Circuit breaker
adopts three phase post type structure, integrated operation structure,
features less components, small volume, light weight, low energy consumption
for opening and closing, high reliability.
2. Fully sealed
structure, with good performance on damp proof, condensation proof; big
creepage outer insulation structure guarantee the strong fifth resistant ability;
it can be used under cold, damp, severely polluted environment.
3. The operation
mechanism is spring operation mechanism or permanent magnetic operation
mechanism, which can realize manual and motor operation as well as remote operation.
It can be operated with controller to realize power distribution automation.
4. CB can be provided
with CT of two phase or three phases. Overcurrent trip protection and smart
controller can be provided to make information analysis, metering CT can be
added as per requirement.
5. Disconnectors can be added. Gang linked, when
disconnectors is open there is obvious clearance, and there is interlock device
with CB, it can also be equipped with lightning arrestor post insulator, which
is easy and safe for maintenance.
>>> Service
condition
1. Altitude no higher
than 2000m
2. Ambient
temperature: -35℃～+40℃
3. Wind speed no
bigger than 35m/s
4. Fifth grade: IV
class
5. Installation:
Places with no danger of fire, explosion and chemical corrosion
6. Seismic intensity
no bigger than 8 grade
>>>

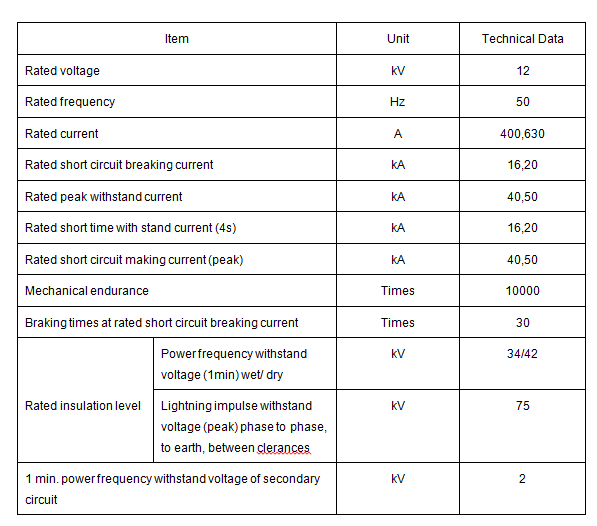

Technical Data
